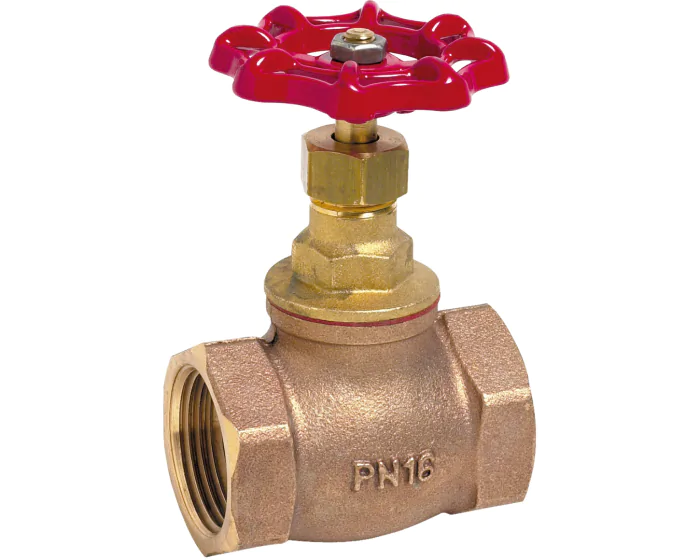

Bronze globe valve 460 with metal-to-metal tightness and a durable bronze body. Full bore, PN16, female BSP connections for water networks. Operates from -10°C to 110°C, ensuring reliable flow control and effective shut-off.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Bonnet material | Brass CW617N |
| Type of seat | parallel |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | EN 12266-1. Rate A |
| Opening device | Handwheel |
| Centering ring | Yes |
| Shaft/stem matérial | Brass CW614N |
| Opening device/signal | Manual |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 45.0 |
| Sealing | Metal / Metal |
| Fluid | Hot / Cold water |
| Body material | Bronze |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | Bronze |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rotating |
| CE | Yes |
| Plug material | Brass CW614N |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Full 1/4'' | 460002 | S1010655 |
€14.86
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/8'' | 460003 | S1010656 |
€14.86
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1/2'' | 460004 | S1010657 |
€15.71
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/4'' | 460005 | S1010658 |
€19.34
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1'' | 460006 | S1010659 |
€27.07
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/4 | 460007 | S1010660 |
€42.50
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/2 | 460008 | S1010661 |
€56.90
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2'' | 460009 | S1010662 |
€78.51
(excl. btw)
|
add to cart |
